C458 Partition / Sneeze Guard


Overview:
  The C458 is built with CRG construction.  The glass is bonded together with special crystal clear glue.  The only hardware is the 2"x3" flanged boot used on the support posts. The shield on these systems telt back 10° and have a 4" mini shelf.  They and are available in four standard heights 18", 22", 24" and 26". There are seven standard widths with the largest panel being 60" wide, and decreasing in 6" steps down to 24".  Custom sizes are available. The partition panels have a 1" air gap under the panels for easy cleaning.
Examples:

  C458 3 Panel Partition
  C458 Outside 90° Corner
  C458 Carving Station
  C458 Inside  90° Corner

C100
Click Image Cut Sheet

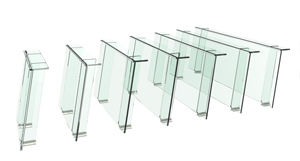

C458 Partition
(60 in. max panel width)
Support Styles:
  The support post for the C458 is a "Square" made from 1/2" Clear or Crystal Clear   safety tempered glass.  The post has a flanged boot measuring 2" x 3" and had four #10 down screws to provide a secure mounting
Square
NSF Meets NSF Certified requirements when installed correctly
Upgrades:
Nipped Corners
  Scallop Corners
Radius Corners
  Carved Glass Designs
  Logo

Specialty Units:

Design Center
  C458 Work Sheet
Add-Ons
  LED Lights
